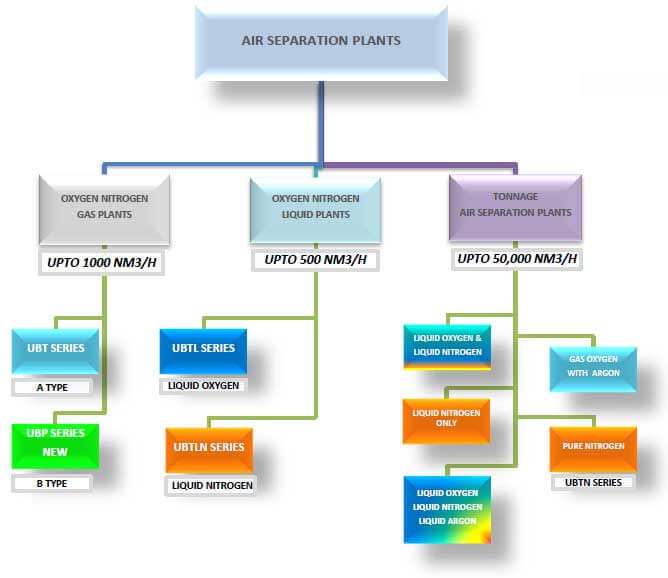

Air separation plants are designed for a vast range of capacities and products summarized below :
The materials used in an air separation plant are exposed to wide range of temperatures, pressures, and purities during operation. Materials are selected that are compatible with the expected condition including normal operation, startup, shutdown, and process upsets.
For the oxygen system to operate safely, all parts of the system should be reviewed for compatibility with oxygen under all conditions they will encounter. The system is designed to prevent oxygen combustion by :
Our engineers have instaled air separation plant in Nigeria, air separation plant in Japan, air separation plant France, air separation plant in Saudi Arabia, air separation plant Iraq, air separation plant in Mexico and air separation plant Dubai, air separation plant Qatar, air separation plant Algeria, air separation plant in Egypt, air separation plant in Brazil, air separation plant Turkey, air separation plant Mexico, air separation plant Oman, air separation plant in Kuwait, air separation plant Argentina, air separation plant in Peru, air separation plant in Yemen, air separation plant Tunisia, air separation plant UAE, air separation plant in Nepal and many more countries.
STEP 1 - Air Compression
In the first stage air is compressed at a low pressure of 5-7 bar (Gas plants) to 10 Bar (liquid plants). Air can be compressed at such low pressure by trouble free rotary compressor (Screw / Centrifugal Type advanced technology is employed in lieu of old bulky piston reciprocating compressor).
STEP 2 - Air Pre-Cooling
The second stage of the process uses a low pressure refrigerant (R-407A as per CE regulations) for pre-cooling the processed air to temperature around 12 deg c before it enters the purifier.
STEP 3 - Purification of Air by Purifier
The air enters a purifier consisting of twin Molecular Sieve driers, working alternatively. The Molecular Sieves remove the Carbon dioxide & moisture from the process air before the air enters Air Separation Unit.

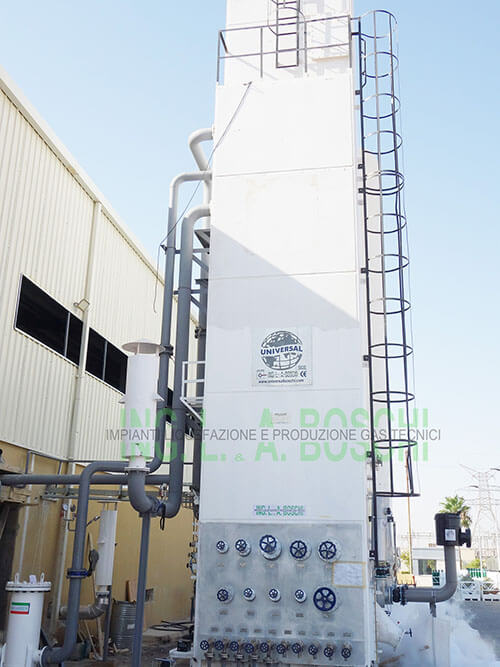

STEP 4 - Separation of Liquid Air into Oxygen and Nitrogen in Air Separation Column
Oil free, moisture free and Carbon Dioxide free air enters into low pressure plate fin type Heat exchanger where the air is cooled below sub zero temperatures by air expansion process in the turbo expander. Due to the excellent thermal efficiency we can achieve a temperature difference delta t as low as 2 deg c at the warm end of these exchangers.
The air has to be cooled to sub zero temperatures for liquification & the cryogenic refrigeration & the cooling is provided by highly efficient turbo expander, which cools the air to temperature almost below -165 to-170 deg C. Air gets liquefied when it enters the air separation column & gets separated into oxygen & nitrogen by the process of rectification.
Oxygen is available in gas or liquid form (as per requirement) at the outlet of the ASU at a purity of 99.6%. Nitrogen is also available at the outlet as a second product at purity of 99.99% upto 3ppm simultaneously without loss of oxygen product (or as specified).
STEP 5 – Product storage
For Gas: The final product in the form compressed Oxygen/Nitrogen goes to the high pressure oxygen cylinders at 1 50 bar or upto higher as required. OR for pipeline supply or captive consumption.
For Liquid: Liquid Oxygen / Nitrogen to fill in cryogenic liquid tanks.
|PRODUCTION||UBT-50||UBT-100||UBT-200||UBT -250||UBT -300||UBT-400||UBT-500||UBT-600||UBT-800||UBT-1000|
|OXYGEN (NM3/HR) CYLINDERS PER DAY||50||100||200||250||300||400||500||600||800||1000|
|OXYGEN CYLNDER PRESSURE 150BAR TO 200BAR|
