PURE NITROGEN PLANTS

Our company designs and develops pure nitrogen plants as per the latest technology & design of an Italian Company . The Italian technology has been proven all over the world for it’s a host of features such as working efficiency, automatic functioning & trouble free operation. Our company exports exclusive nitrogen plant that performs as per the plants of international standard. Furthermore, features like safety, environment protection and low power consumption go along with our plants.

Our pure nitrogen plants are operational for a wide application in a number of industries and are designed and developed to perfection. With the years of experience, technological advancement and skilled workforce, we manufacture the plants as per the designs and specifications of our valued and known clients. The systems are popular for being durable, corrosion resistant, high performer and easy installation.

Our engineers have instaled pure oxygen nitrogen plant in Nigeria, Japan, France, pure oxygen nitrogen plant Saudi Arabia, Iraq, Iran, Dubai, pure oxygen nitrogen plant Qatar, Algeria, Egypt, pure oxygen nitrogen plant Brazil, Turkey, Iran, pure oxygen nitrogen plant Oman, Kuwait, pure oxygen nitrogen plant Argentina, pure oxygen nitrogen plant Peru, Yemen, pure oxygen nitrogen plant Tunisia, pure oxygen nitrogen plant UAE, Nepal and many more countries.

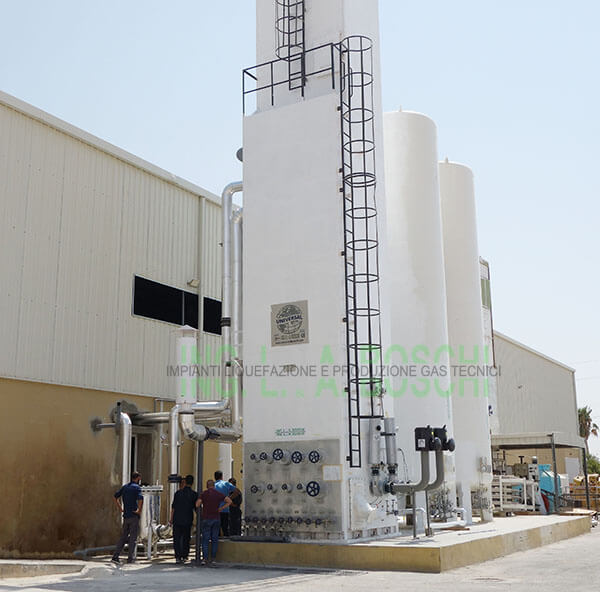

Salient features of the pure nitrogen plants :

  • Leak Proof argon welded column
  • Expert design and drawing
  • Very compact and user friendly
  • Low working pressure
  • Latest molecular Sieve absorption of Zeochem
  • Highly efficient Italian trays for maximum recovery of nitrogen

Available in 50 m3/hr - 1000 m3/hr, the plants generate nitrogen in the both form liquids as well as gases. Nitrogen is a non-reactive gas. Neither it has color, odor nor taste. Comprising of round 78% of the Earth’s atmosphere, its atomic number is 7 and the symbol is N.

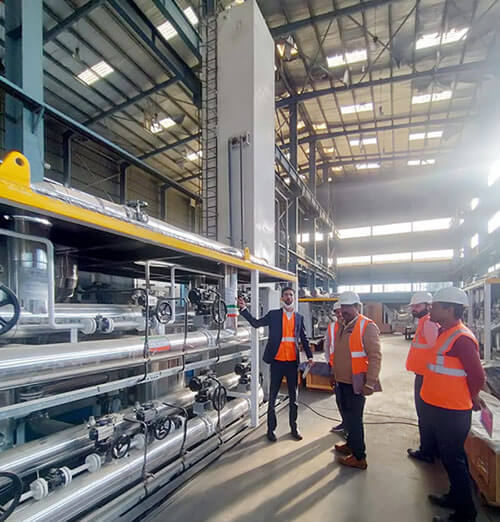

Main components of Pure Nitrogen Plants :

Air compressor : Rotary air compressors screw type can be employed for smaller size plants upto 500 m3/hr & 1000 m3/hr. However, centrifugal compressor can be employed for big size plants.

Air pre-cooling system : Air separation plants adopts chilling system in all air pre-cooling systems.

Air purification system : The system beds of molecular sieve that are used in the air purification system. It removes impurities like CO2 & moisture for the process air at low-pressure.

Rectification column : The unit in cold box is all low pressure technology. This unit uses the latest state of the art plate and fin exchanger, condenser and sub-coolers. The column is supplied as a packed unit complete with all the control systems including digital flow-meters, temperature, pressure available with high purity upto 2-3 ppm nitrogen as a second product without loss in oxygen production.

Turbo-expander : Turbo-expander is employed for giving cooling to the air for the liquification process and braked by booster, so as to diminish the expanded air column, stabilize the upper columns working condition and reduce power consumption. The turbine expanders have complete trouble free working and long life and reliability.

Computer control : All the plants can be configured for automatic operation through a pc. This will use an out switching valves of Germany or Japan and motorized cryogenic valves on cold box.

nitrogen plants manufacturer nigeria
nitrogen plants in nigeria
nitrogen plants nigeria
oxygen plants manufacturer nigeria

UBTN SERIES PLANT SPECIFICATIONS :

Model GAN Capacity
Nm3/h
LIN Capacity
Liter/h

Purity
X 10-6 O2

N2 Pressure

(Bar)

Air Pressure

(bar)

UBTN-50/5

50

5

< 3ppm

5.0

7.0

UBTN-100/6

100

6

< 3ppm

7.0

7.0

UBTN-150/10

150

10

< 3ppm

7.0

10.0

UBTN-200/20

200

20

< 3ppm

7.0

9.0

UBTN-300/25

300

25

< 3ppm

5.5

9.0

UBTN-500/30

500

30

< 3ppm

5.5

7.0 (8.0)

UBTN-700/90

700

90

< 3ppm

5.5

7.0

UBTN-800/40

800

40

< 3ppm

5.0

6.0

UBTN-800/40

800

40

< 3ppm

2.3

(8.0)6.0

UBTN-1000/40

1000

40

< 3ppm

2.0

6.0

UBTN-1000/50

1000

50

< 3ppm

5.0

6.0

UBTN-1100/40

1100

40

< 3ppm

2.0

7.5

UBTN-1500/120

1500

120

< 3ppm

5.0

6.5

UBTN-1600/50

1600

50

< 3ppm

2.0

7.5

UBTN-1600/70

1600

70

< 3ppm

5.0

6.0

UBTN-2000/70

2000

70

< 3ppm

2.0

6.0

UBTN-2400/60

2400

60

< 3ppm

6.0

7.0

UBTN-2400/70

2400

70

< 3ppm

2.0

7.0

UBTN-2400/110

2400

110

< 3ppm

4.5

6.0

UBTN-3000/100

3000

100

< 3ppm

8.0

9.0

UBTN-4500/400

4500

400

< 3ppm

8.5

9.5

UBTN-5600/155

5600

155

< 3ppm

10.0

11.0
